Our Exceed Corporation’s UV digital inkjet printer is created to meet the requirements of both small scaled customized and large-scale industrial production of various materials that need surface inkjet printing. With high definition, high durability, high simulation, high stereoscopic sense, it enriches the flexibility and dynamic of the printed surface, thus making products to be value added. The ink we use is clean and environmentally-friendly and the printing effect looks fresh and beautiful. Our choice of print head is strongly anti-pollution whereas UV lamp functions accurately and is durable. The 3D concave and convex effect looks lifelike and the overall appearance are impressive and at the same time offer vivid sense of touching. With large-format design, our machine can serve different sizes of required products.
精工SPT1024GS噴頭特點
SEIKO SPT1024GS噴頭擁有72mm的噴嘴寬度,，360DPI的物理精度，30KHZ的點火頻率,，以及7-35PL的可變墨滴,，為諸如紡織、標簽,、包裝,、陶瓷,、高級制造業和其它產品裝飾等數碼噴墨打印的應用提供了無與倫比的可靠性。支持6級灰度打印,從小墨滴7PL到大墨滴35PL,，單點打印的點火頻率高于30khz,，使SEIKO 1024GS噴頭實現高速度、高效能和高質量的圖像輸出,，噴頭內置EPROM存儲器,用戶可根據自身需求設定數據,以滿足市場多樣化,，對于高產量噴頭，1024GS利用墨水通道分流技術,，實現墨水的快速供應,，讓所有的噴嘴在同一時間實現更高的噴射頻率。
SEIKO 1024GS的噴頭材質：全鋼架構,，耐裝機及抗打擊能力好,。
優勢：噴頭底部有墨水加溫系統，而且是兩側進行雙加溫,，噴頭兩邊的加溫最高可以達到45℃,，最低可調整至20℃。SEIKO 1024GS噴頭屬于串口型接口,，串口型接口拆解時插上去不至于將噴頭扁平線插反,，防止噴頭損壞或直接燒毀。 SEIKO 1024GS噴頭也是可拆解式的,，可直接對噴頭進行拆解清洗,。
打印速度：高精度生產模式每小時20個平方米，使用壽命：長達3年
SEIKO 1024GS噴頭能打印15-20mm高低落差,，完全適合凹凸面木門,，防盜門，及運動鞋鞋面打印圖案的要求,。
Features of SPT1024GS print head for high-accuracy work pieces
SEIKO SPT1024GS print head’s nozzle is 72mm wide, with 360dpi physical accuracy, 30KHS ignition frequency and 7-35PL variable ink droplets. Printing applications provide unmatched reliability for such work pieces as textile, labels, packaging, ceramics, advanced manufacturing and other decorative products. It supports a 6-level grayscale printing, from small droplets of 7PL to large droplets of 35PL. Its single-point printing ignition frequency is higher than 30khz, enabling SEIKO 1024GS nozzles to achieve high-speed, high-performance and high-quality image output. With built-in EPROM memory, users can set data according to their own needs to meet market diversification. For high-output nozzles, the 1024GS adopts ink channel diversion technology to achieve quick ink supply, allowing all nozzles to achieve higher jetting frequency at the same time.
Material of SEIKO 1024GS: All steel structure, resistant to installation and anti-strike
Advantages: There is an ink heating system at the bottom of the nozzle and it is double-heated on both sides. The maximum heating temperature on both sides of the nozzle can reach 45°C and the minimum can be adjusted to 20°C.
SEIKO 1024GS nozzle is of serial interface. When the serial interface is disassembled, it will not be inserted into the flat line of the nozzle to prevent the nozzle from being damaged or directly burned. SEIKO 1024GS print head is also detachable and can be disassembled and cleaned directly.
Print speed: high-accuracy printing mode: 20m2/hour
Service life: 3 years
SEIKO 1024GS print head supports a 15-20mm height difference for uneven surface printing, completely fulfilling requirements of the concave-convex printing on wooden door, burglar-proof door and sports shoe.

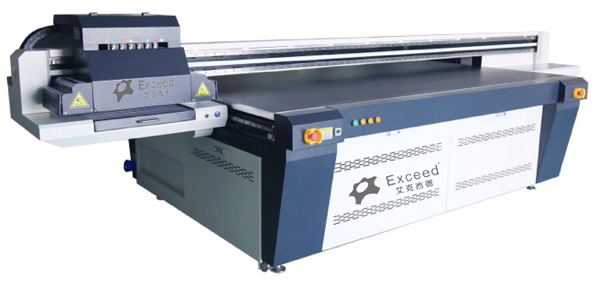

UVP2513H平板噴繪機
詳細參數
打印尺寸：2500X1300MM
打印色彩：C,、M、Y,、K,、LC、LM,、W,、V 噴頭型號：SEIKO 1024GS
打印高度：10CM(可定制30CM)
打印速度：4pass: 32m²/小時; 6pass: 20m²/小時; （一組噴頭測試） 噴頭保護：智能觸碰式檢測自動保護系統
升降功能：自動測高，智能機頭升降
墨水特征：采用環保墨水,。色彩靚麗,，戶外耐久度高 的UV墨水噴頭控制：軟件調整噴頭溫度和電壓
物料處理：櫥柜、陶瓷,、亞克力,、木板,、工藝品、油畫,、玻璃,、水晶、金屬,、皮革,、PVC、ABS等固化系統：LED UV燈固化系統
顏色控制：符合國際 ICC 標準,，擁有曲線和密度調整功能圖像格式：TIFF,，JPEG，Postscript3,，EPS,，PDF等
電力要求：AC220/110±10,50HZ~60HZ，P 1100W
接口方式：高速USB3.0傳輸接口
操作環境：溫度：18-30度相對濕度：40%~70%設備尺寸：4500X1950X1290mm
Detailed parameter
Printing size: 2500x1300mm
Printing colors: C, M, Y, K, LC, M, W, V
Print head model: SEIKO 1024GS
Printing height: 1-100mm (can be custom-made to 300mm)
Printing speed: 4 pass: 32m2/hour; 6 pass: 30m2/hour (1 set of print head for testing)
Print head protection: Intelligent touch-mode detection and automatic protection system
Up-down lifting function: Automatic thickness measuring; intelligent up-down head lifting
Ink features: Environmentally-friendly ink, with beautiful colors, wear-resistant to outdoor high UV exposure.
Nozzle control: Software for adjustment of print head temperature and voltage
Media solution: cupboard, ceramics, acrylic, wooden board, handiwork, oil painting, crystal, metal, leather, PVC, ABS, etc
Curing system: LED UV lamp curing system
Color control: In conformity with international ICC standards, with curve and density adjustment function
File format: TIFF, JPEG, Postscript3, EPS, PDF, etc
Power supply: AC220/110±10,50HZ~60HZ,，P 1100W
Port interface: High-speed USB3.0 transmission interface
Operation environment: Temperature: 18-30 degrees celsius; relative humidity: 40%-70%
Machine dimension (LxWxH): 4500x1950x1290mm
EX-UVP3220H平板噴印機
詳細參數
打印尺寸：3200X2000MM
打印色彩：C,、M、Y,、K,、LC、LM,、W、V 噴頭型號：SEIKO 1024GS
打印高度：10CM(可定制30CM)
打印速度：4pass: 32m²/小時; 6pass: 20m²/小時; （一組噴頭測試） 噴頭保護：智能觸碰式檢測自動保護系統
升降功能：自動測高,，智能機頭升降
墨水特征：采用環保墨水,。色彩靚麗，戶外耐久度高 的UV墨水噴頭控制：軟件調整噴頭溫度和電壓
物料處理：櫥柜門板,、陶瓷,、亞克力、木板,、工藝品,、油畫、玻璃,、水晶,、金屬、皮革,、 PVC,、ABS
等固化系統：LED UV燈固化系統
顏色控制：符合國際 ICC 標準，擁有曲線和密度調整功能圖像格式：TIFF,，JPEG,，Postscript3,，EPS，PDF等
電力要求：AC220/110±10,50HZ~60HZ,，P 1100W
接口方式：高速USB3.0傳輸接口
操作環境：溫度：18-30度相對濕度：40%~70%
設備尺寸：4900mm[長]× 2800mm[寬]×1450mm[高]
Detailed parameter
Printing size: 3200x2000mm
Printing colors: C, M, Y, K, LC, LM, W, V
Print head model: SEIKO 1024GS
Printing height: 10cm (can be custom-made to 30cm)
Printing speed: 4 pass: 32m2/hour; 6 pass: 30m2/hour (1 set of print heads for testing)
Print head protection: Intelligent touch-mode detection and automatic protection system
Up-down lifting function: Automatic thickness measuring; intelligent up-down head lifting
Ink features: Environmentally-friendly with, with beautiful colors, wear-resistant to outdoor high UV exposure.
Nozzle control: Software for adjustment of print head temperature and voltage
Media solution: cupboard, ceramics, acrylic, wooden board, handiwork, oil painting, crystal, metal, leather, PVC, ABS, etc
Curing system: LED UV lamp curing system
Color control: In conformity with international ICC standards, with curve and density adjustment function
File format: TIFF, JPEG, Postscript3, EPS, PDF, etc
Power supply: AC220/110±10,50HZ~60HZ,，P 1100W
Port interface: High-speed USB3.0 transmission interface
Operation environment: Temperature: 18-30 degrees celsius; relative humidity: 40%-70%
Machine dimension (LxWxH): 4900x2800x1450mm
特殊機型可定制?？梢赃x配無人值守的全自動打印系統,。垛料碼放后，機械手臂進行自動上下料,、定位等流水線操作,。無人值守系統軟件支持由艾克西德獨立提供。
Special model can be custom-made. All-automatic unmanned system is also an option. After substrates are stacked up, the up/unloading operation runs, positioning is set and the automatic processing flow will handle the rest. Software for unmanned system is solely supported by Exceed Corporation.
