您當前的位置:首頁 > 產品中心 > 自產類 >

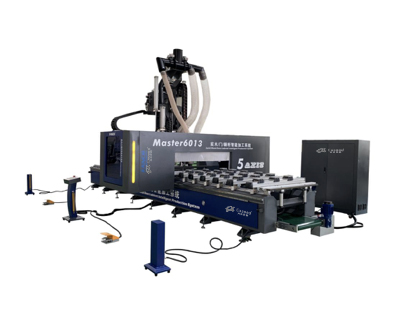

全屋定制室內門樓梯全能型五軸

產品詳細

特點：龍門結構5軸CNC數控加工中心,，對實木,，人造板或類似材料進行鏤銑和鉆孔加工,，對拼裝木門門邊/碼頭/芯板/鎖孔/合頁/工藝孔可一次成型,。

Features: 5-axis CNC machining center with gantry structure, which performs milling and drilling of solid wood, wood-based panels or similar materials, and can be formed at one time on the edge of the assembled wooden door / dock / core board / keyhole / hinge / craft hole

簡要描述：A brief description:

K型夾持梁臺面 K-shaped clamping beam table
臺灣真空系統 Taiwan Vacuum System
HSK F63刀具夾頭系統 HSK F63 tool chuck system
自主FCAM軟件 Autonomous FCAM software

機器基礎結構 Machine infrastructure

高溫淬火,，振動時效處理的重型整體焊接機身
Heavy-duty integral welded body with high temperature quenching and vibration aging treatment
配防塵裝置的進口直線導軌
Imported linear guide with dust protection device
臺灣齒輪齒條機構驅動X軸和Y軸
Taiwan rack and pinion mechanism drives x-axis and y-axis
臺灣滾珠絲桿往復機構驅動Z軸
Z-axis driven by Taiwan ball screw reciprocating mechanism
臺灣新代數控驅動技術保證高度動態精準鏤銑廓形
Taiwan's SYNTEC CNC drive technology guarantees highly dynamic and precise profile milling
日本安川免維護數控AC交流伺服電機保證精準鏤銑廓形
Japan's Yaskawa maintenance-free CNC AC servo motor guarantees precise contour milling
龍門裝配5軸頭+鉆組系統,，鉆組和主軸快速交替使用
The gantry is equipped with a 5-axis head + drilling group system, and the drilling group and the spindle can be used alternately quickly.
斗笠刀庫和排列式刀庫快速交替使用
Quickly alternate between carousal tool magazine and liner tool magazine
高效雙工位工作臺
Efficient double-station workbench
Z軸行程 500mm(加工厚板材時可使用長刀具)
Z-axis stroke 500mm (long tools can be used when processing thick plates)
運行速度 Running speed
矢量速度 Vector speed ：80M/MIN
X軸向 x-axis ：40M/MIN
Y軸向 y-axis ：70M/MIN
Z軸向 z-axis ：25M/MIN
所有驅動機構和線性機構(X/Y/Z軸)自動中央集中潤滑
Automatic central centralized lubrication of all drive mechanisms and linear mechanisms (x / y / z axis)
壓縮空氣管路,，直徑12mm,，氣壓0.8MPa
Compressed air line, diameter 12mm, air pressure 0.8MPa
吸塵管路,，壓縮空氣管路和電路請按照工廠實際情況進行
The dust suction pipeline, compressed air pipeline and circuit should be carried out according to the actual situation of the factory

2. 板材尺寸：Sheet size:

雙臺面加工

Double table processing

單臺面加工

Single table processing

板材最大長度Maximum plate length

3000mmX2

6000mm

板材最大寬度Maximum plate width

1300mm

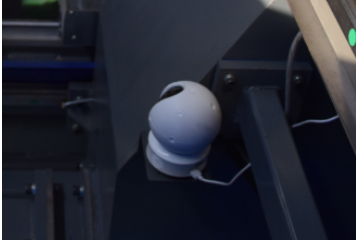

整機監測加工,，全程影像記錄 Machine monitoring and processing, full image recording

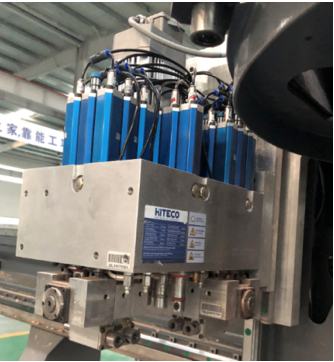

F20鉆組，包含 F20 drill unit, including

12個獨立垂直鉆軸 12 independent vertical drill
8個水平鉆軸 8 horizontal drill
2個鋸片 2 saw blades

最大鉆頭長度Max drill length70mm,最大速度max speed8000RPM

最大鋸片直徑Max saw blade diameter125mm,最大速度max speed10000RPM

意大利Hiteco 5軸頭Italy Hiteco 5 axis head

包括:include:

- HSK F 63 快速換刀夾頭HSK F 63 quick tool change chuck

-主軸功率12KW,，轉速24000 rpmSpindle power 12KW, speed 24000 rpm

-正反轉Positive and negative

-靜態變頻器可以保持轉速和迅速停止旋轉Static frequency converter can maintain speed and stop rotation quickly

-B軸極限范圍：+110°-110°b-axis limit range: + 110 ° -110 °

-C軸極限范圍：± 360°c-axis limit range: ± 360 °

-水冷卻 Water cooling

-除塵罩,，氣動控制開和閉Dust hood, pneumatically controlled opening and closing

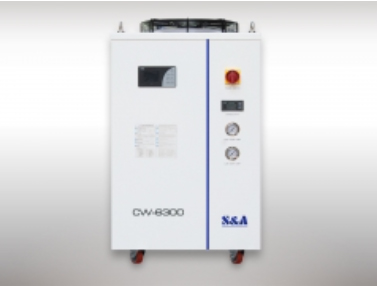

水冷單元組，用于五軸頭工作的工業冷水機

Water cooling unit group, industrial chiller for five-axis head work

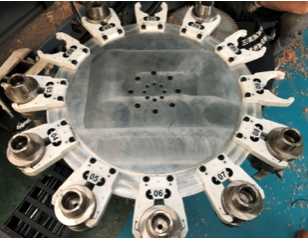

TM12自動換刀刀庫(圓盤式)能裝載12把刀具

TM12 automatic tool changer magazine (disc type) Can hold 12 tools

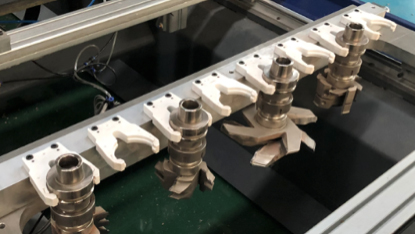

TM10自動換刀刀庫(直排式)能裝載10把刀具
TM10 automatic tool changer magazine (linear) Can hold 10 tools

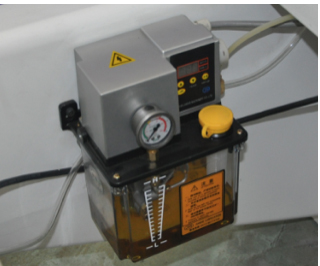

自動集中潤滑 Automatic centralized lubrication

通過電子控制,，實現移動部件的自動潤滑,，并保持X/Y/Z三個軸的正確給油量 Through electronic control, automatic lubrication of moving parts is achieved, and the correct oil supply of the three axes x / y / z is maintained

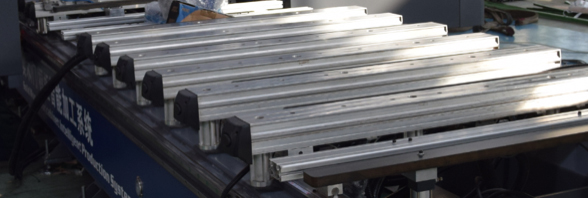

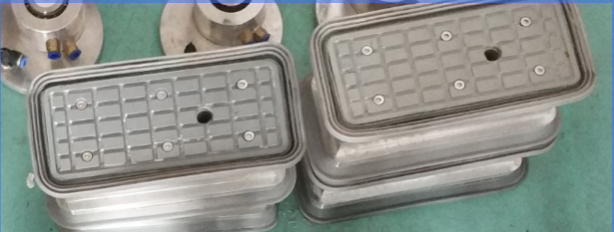

12個條形吸附工作臺托架12 strip-shaped suction table bracketsL=1360mm 28個吸盤,型號為28 suction cups, model is120*50*125Q 75*75*125Q 75*115*125Q

吸盤尺寸120X50mm,75X75mm,75X125mm，高度為125mm

Suction cup size 120X50mm, 75X75mm, 75X125mm, height 125mm

250m³臺灣真空泵2臺 250m³ Taiwan vacuum pump 2
