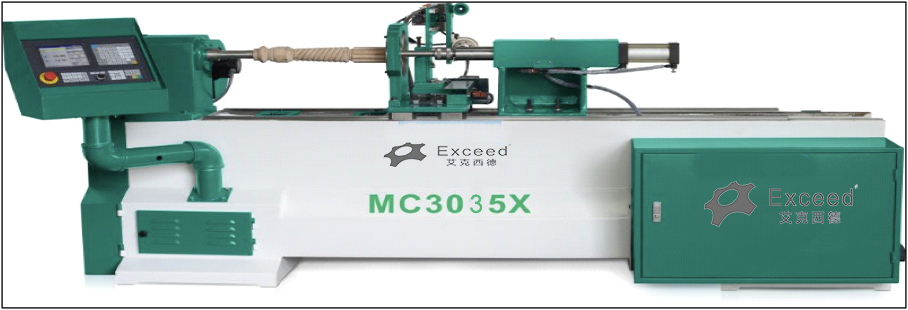

全自動木工數控車床,,型號MC3035X (木工數控車床圖片)
Fully-automatic CNC Woodworking lathe, Mode: MC3035X (picture below)
可一次性完成圓車、螺紋銑,、拉槽,、拉線等動作
The machine can finish the job of round turning, thread milling, slot marking and line marking, etc in a single processing.
一.木工數控車床,型號MC3035X性能描述:1. Description of CNC woodworking lathe, model MC3035X
該設備是一臺用于生產木制產品的木工數控車床:This is a machine of CNC woodworking lathe used for processing woodcrafts.
加工范圍:可生產直徑¢10mm~320mm,長度最長:1500mm的木產品,。
Working range: It can produce woodcrafts within the size range of 10mm~320mm in diameter and max 1500mm in length.
二.全自動木工數控車床,,型號MC3035X基本配置信息:2. Features of Fully-automatic CNC woodworking lathe, model MC3035X
Parts & Components |
Model No. |
Brand |
Size |
Warranty |
Remarks |
Lathe body |
MC3035X |
Exceed |
1500*320 |
1 year |
|
Spindle Motor |
YE2-112M-4 |
JiangTian |
380 V,4KW |
1 year |
|
Servo drive motor (x/y/z) |
|
Hirden (HaiDe) |
1.2/1.2/1.5kw |
1 year |
|
High-speed motor High-speed inverter |
|
XinJieSi |
2.2KW 2.2KW |
1 year |
|
Guide block |
H25VN |
TBI |
Linear guide block |
1 year |
|
Guide rail |
TRH25 |
TBI |
Linear guide rail |
1 year |
|
Ball Screw |
3032 |
TBI |
|
1 year |
|
