工業暖風機 Industrial Electric Fan Heater
產品型號 Product Model Number∶EX-W24
產品規格 Product Capacity∶24KW
工 作電壓 Voltage∶ AC180V≈AC270V
風機接線電壓∶三相四線,，工業 The fan’s wiring: 3 phase, 4 wire (industrial application)
時間設定∶0≈24小時 設定溫度∶0≈60度 恒溫自動運行
Timer setting: 0-24 hours Temperature setting: 0-60 degrees, automatic setting of consistent temperature
工作環境溫度∶-40≈70度 循環風量∶900-1000m³/H
Temperature for operating environment: 40-70 degrees; air volume circulation: 900-1000m³/H
操控方式：遙控器+手動
Operating mode: by remote control + manual operation
出風口：正面+雙側
Air outlet: Front + 2 sides
安全措施：防塵處理+側倒自動 斷電
Safety measure: Dust treatment + automatic power off (when tumbling sideways)

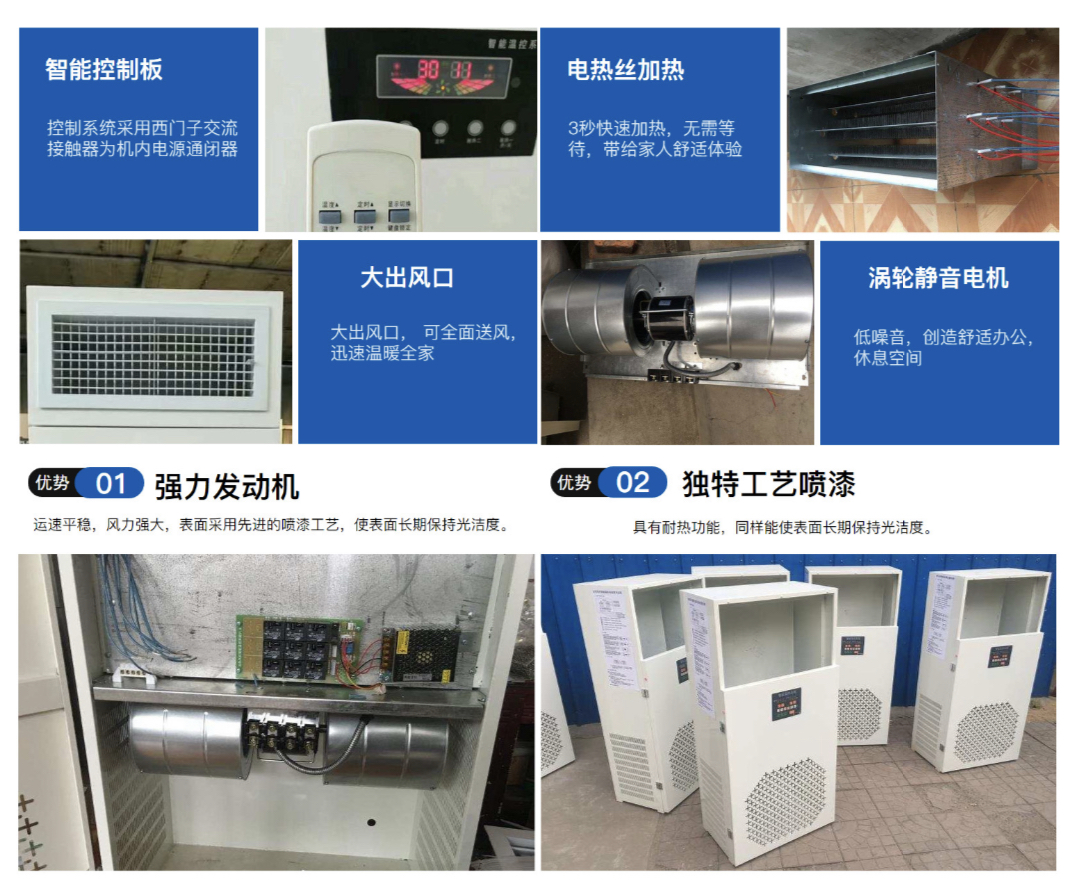

加熱方式：電磁防塵加溫+靜音渦輪風扇送風系統
Heating method: Electromagnetic dustproof heating + silent turbine fan air supply system
接線尺寸∶國標6平方銅線
Wiring spec: 6Sq.mm copper wire of international standard
占地面積：600*350*1250
Area occupation: 600*350*1250
保固期：1年
Warranty: 1 year

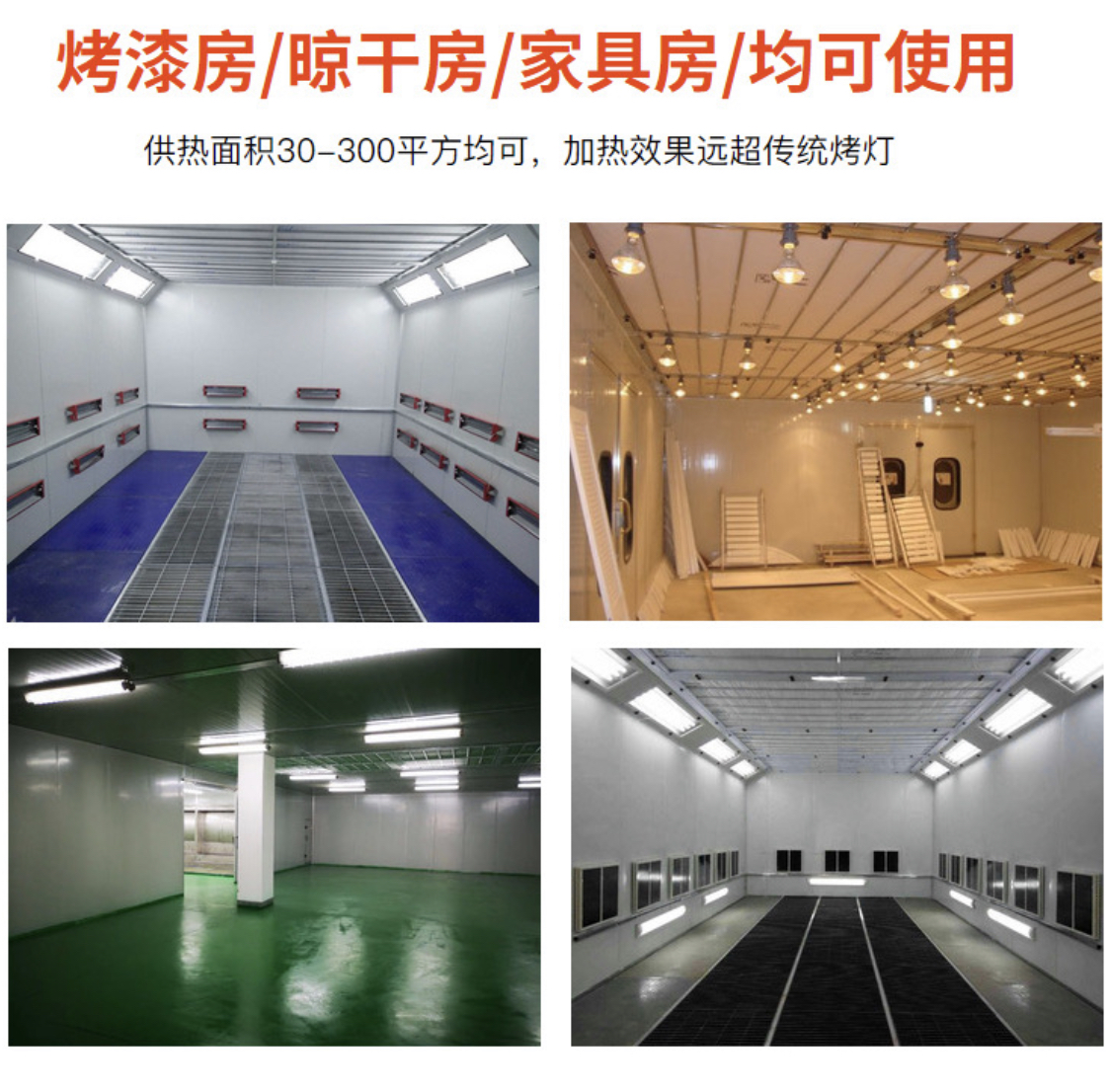

使用場合∶烤漆房 晾干房 烘干房 車間 等
各類工業用和民用取暖場地均可適用
Suitable Application: Paint booth; solar cabinet dryer; drying booth; workshop, etc. Suitable for all kinds of heating sites for both industrial and civic applications.
